Afm-neo series – contamination-free Airflow visualisation in cleanrooms Acc. To iso 14644-3 annex b7
Sistema-mk gmbh i www.sistema-group.de afm40-dual i afm24-neo i fm35-neo i afm cube brochure rev.01.2024
Cleanrooms are not static but dynamic production areas in critical contamination environments. People and goods are constantly in motion. Installations, production lines, and machinery require periodic adjustment and redesign according to the specific production requirements of different pharmaceuticals or semiconductor products.
The pertaining standard, ISO 14644-3, requires cleanroom operators to provide periodic evidence of the in-situ Air flow situation through airflow mapping studies supported by high-purity cleanroom foggers (air flow mappers).

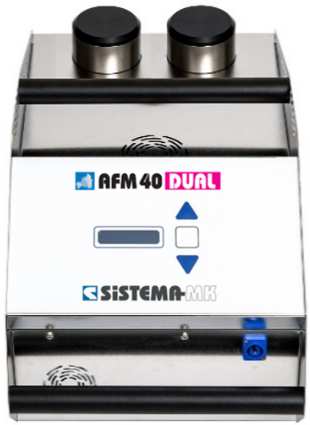

Sistema’s afm-neo cleanroom fogger series consisting of the afm40-dual I afm35-neo I afm24-neo, and the 2024 launched afm cube makes use of unique and suitable for this specific purpose, designed stainless steel high-performance piezoelectric modules to generate up to 6,4 m3/min
226 ft/min with max. Fog density Of 866 ml/min to provide a visualised range of up to 10 m (afm40-dual performance data). This enables
every type, from minor to large-scale contamination-free, smoke and airflow mapping studies in clean rooms, sterile rooms, medical surgery rooms, and iso suites. All devices of Sistema’s afm-neo series are operated with di water or wifi water as a single media.
Key features Sistema AFM35 | 24 New 40 Dual
– flexible control of fog volume, density and airflow via built-in fan (controllable from 0 to 100 % output) and selectable number of blocks in operation
– multiple fog spot design (possibility of working with a single afm-neo at several locations at the same time)
– wireless remote control (opt.) For device functionality, switch & flash mode, fan up/down, 4-3-2-1 block run
– media tank filling on the fly (opt.)
– built-in redundancy and up to 5 years of warranty
– sanitisable with 6% hydrogen peroxide or calcium hypochlorite 0,2 ml/100ml or isopropyl alcohol
– generating an ideal fog droplet size range (measured 5 cm above piezo at 7° c water temp. And before recombination effects)
| < 0.3 µm – | 12 % OF GENERATED DROPLETS |
| 0.3 µm – 0.5 µm | 36 % … |
| 0.5 µm – 1.0 µm | 24 % … |
| 1.0 µm – 5.0 µm | 20 % … |
| > 5.0 µm | 8 % … |
Typical applications for Sistema AFM35 | 24 New 40 Dual
– airflow recovery tests guided by iso 14644-3 annex b12
– airflow visualisation tests guided by iso 14644-3 annex b7
– USP 797 in-situ airflow analysis and USP 800 compound pharmacy airflow tests
– airflow tests for NSF 49 and bio-safety cabinets
– airflow requirements using semiconductor clean room guidelines and guided by federal standard 209e
– containment transport studies on process tools
– optimisation of equipment locations
– tracking routes of air infiltration into cleanrooms
– pressure balancing (rooms and spaces)
– operators training
